PAEK KU 11 fast attack craft (gun) (1970/1971)

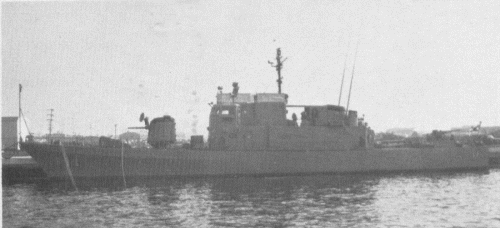

Paek Ku 11 1972
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 갈매기 11 [Paek Ku 11] (ex-Benicia), 1978- 갈매기 51 [Paek Ku 51] | 11, 1978- 351, 1995- 581 | Tacoma BB, USA | 4.1969 | 20.12.1969 | 4.1970 // 15.10.1971 | stricken 8.1996 |
Technical data
| Displacement standard, t | 225 |
|---|---|
| Displacement full, t | 245 |
| Length, m | 50.1 |
| Breadth, m | 7.30 |
| Draught, m | 2.90 |
| No of shafts | 2 |
| Machinery | CODOG: 2 Cummins VT12-875M diesels / 1 General Electric LM-1500-PE102 gas turbine |
| Power, h. p. | 1450 / 12500 |
| Max speed, kts | 16 / 40 |
| Fuel, t | diesel / gas turbine oil |
| Endurance, nm(kts) | 1700(16) |
| Armament | 1 x 1 - 76/50 Mk 34, 1 x 1 - 40/60 Mk 3, 2 x 2 - 12.7/90 |
| Electronic equipment | Raytheon 1645, SPG-50 radars |
| Complement | 28 |
Graphics
Paek Ku 11 1972
Project history
Former USN Asheille class craft.
Modernizations
1976: + 2 x 2 Standard ARM SSM (4 RGM-66D)
Naval service
No significant events.
