FB1 coastal patrol craft (1967)
FB10
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
FB1-3 FB5-10 |
Sewart Seacraft, Berwick, USA: FB1-3, 5-10 |
8/1967: FB1-3, 5-10 |
none |
none |
1982: FB1-3, 5-10 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 33 |
| Length, m | 19.8 |
| Breadth, m | 4.90 |
| Draught, m | |
| No of shafts | 3 |
| Machinery | 3 General Motors diesels |
| Power, h. p. | 1590 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1200(17) |
| Armament | 2 x 1 - 20/70 Mk 10, 3 x 1 - 7.6/90 |
| Electronic equipment | radar? |
| Complement | 7 |
Graphics

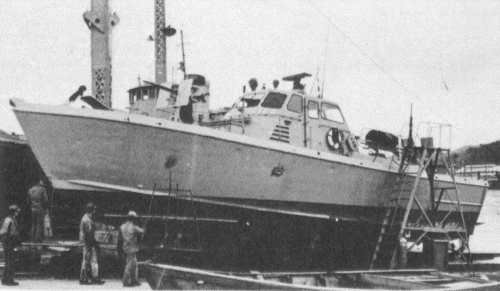

FB10
Project history
Small patrol boats.
Modernizations
None.
Naval service
No significant events.
