CHAMSURI 211 patrol craft (2017-)





Chamsuri 211 2017

Ships


Name No Yard No Builder Laid down Launched Comp Fate
참수리 211 [Chamsuri 211] 211   Hanjin, Pusan   26.7.2016 30.10.2017 in service (2019)
참수리 212 [Chamsuri 212] 212   Hanjin, Pusan   21.12.2018 2019 building (2019)
참수리 213 [Chamsuri 213] 213   Hanjin, Pusan   21.12.2018 2019 building (2019)
참수리 215 [Chamsuri 215] 215   Hanjin, Pusan   21.12.2018 2019 building (2019)
참수리 216 [Chamsuri 216] 216   Hanjin, Pusan   2019 2020 awarded (2019)
참수리 217 [Chamsuri 217] 217   Hanjin, Pusan   2019 2020 awarded (2019)
참수리 218 [Chamsuri 218] 218   Hanjin, Pusan   2019 2020 awarded (2019)
참수리 219 [Chamsuri 219] 219   Hanjin, Pusan   2019 2020 awarded (2019)
참수리 221 [Chamsuri 221] 221   Hanjin, Pusan   2020 2021 awarded (2019)
참수리 222 [Chamsuri 222] 222   Hanjin, Pusan   2020 2021 awarded (2019)
참수리 223 [Chamsuri 223] 223   Hanjin, Pusan   2020 2021 awarded (2019)
참수리 225 [Chamsuri 225] 225   Hanjin, Pusan   2020 2021 awarded (2019)


Technical data


Displacement standard, t

210
Displacement full, t

250
Length, m

44.0 pp 48.0 oa
Breadth, m

7.00
Draught, m

2.40
No of shafts

2
Machinery

2 MTU MD538 TU90 diesels
Power, h. p.

17700
Max speed, kts

40
Fuel, t

diesel oil
Endurance, nm(kts)
Armament

1 x 12 - 130 K33 corrected rocket launcher, 1 x 1 - 76/62 Hyundai Wia SR-2, 2 x 1 - 12.7/90
Electronic equipment

SPS-100K, SPS-540K, CEROS 200 9LV327 Mk 3E radars, Hanwha e/o system, SLQ-200(v)K Sonata ECM suite, 2x KDagaie Mk 2 decoy RL, Hanwha CCS
Complement

32


Graphics

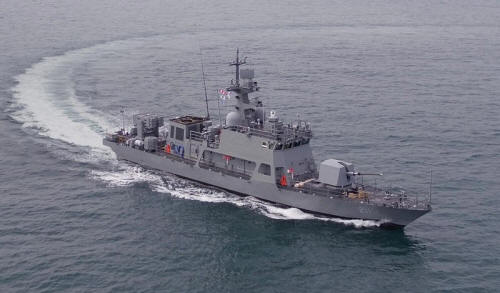

<i>Chamsuri 211 </i>2017
Chamsuri 211 2017


Project history

New large class of fast attack craft, PKX-B, replacement for the Sea Dolphin. Reduced Gumdoksuri (PKX-A)

Modernizations

None.

Naval service

No significant events.
