HARAMBEE patrol craft (1987/2011)

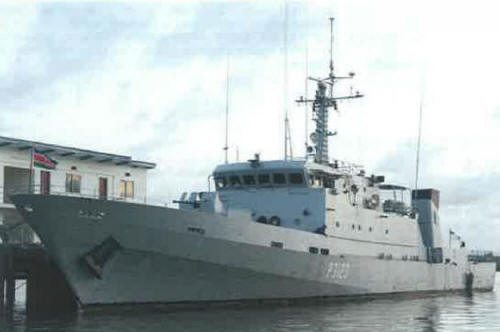

Harambee 2013

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Harambee (ex-La Rieuse) P3123   CMN, Cherbourg, France 14.3.1985 17.10.1986 13.6.1987 // 7.6.2011 in service (2020)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Harambee (ex-La Rieuse) P3123   CMN, Cherbourg, France 14.3.1985 17.10.1986 13.6.1987 // 7.6.2011 in service (2020)

Technical data


Displacement standard, t

373
Displacement full, t

480
Length, m

50.0 pp 54.5 oa
Breadth, m

7.70 wl 8.00 deck
Draught, m

2.54
No of shafts

2
Machinery

2 SEMT-Pielstick 16 PA4 V200 VGDS diesels
Power, h. p.

8000
Max speed, kts

23
Fuel, t

diesel oil 73
Endurance, nm(kts)

4200(15)
Armament

1 x 1 - 40/60 Mk 7, 1 x 1 - 20/90 F2, 2 x 1 - 7.6/90
Electronic equipment

DRBN-38 radar
Complement

29 + 20 passengers


Standard scale images


<i>Harambee </i>2015
Harambee 2015


Graphics


<i>Harambee </i>2013
Harambee 2013


Project history

Former French L'Audacieuse class patrol craft.

Modernizations

None.

Naval service

No significant events.
