FIGHTING SHIPS OF THE WORLD
JORDAN
COASTAL FORCES
SOHUK 1 patrol boats (1972/1992)
1972
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
سحق1 [Sohuk 1] (ex-G30) صكوك1 [Sokuk 1] (ex-G31) |
Yachtwerft, Berlin, East Germany: Sohuk 1, Sokuk 1 |
1972 // 1992: Sohuk 1, Sokuk 1 |
none |
none |
1996: Sohuk 1, Sokuk 1 |
Technical data
| Displacement standard, t | 34 |
|---|---|
| Displacement full, t | 38 |
| Length, m | 23.1 |
| Breadth, m | 4.70 |
| Draught, m | 1.48 |
| No of shafts | 2 |
| Machinery | 2 6VD18/15 diesels |
| Power, h. p. | 490 |
| Max speed, kts | 17 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | small arms |
| Electronic equipment | TSR-222 radar |
| Complement | 6 |
Graphics

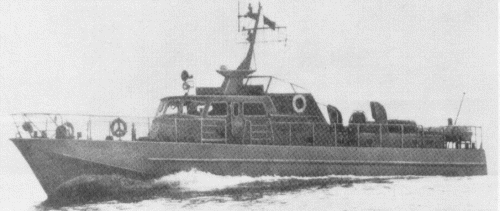

1972
Project history
Small patrol boats of project 1589 for Volksmarine Board Guard.
Modernizations
None.
Naval service
: No significant events.
