AL HUSSEIN fast attack craft (gun) (1989-1990)

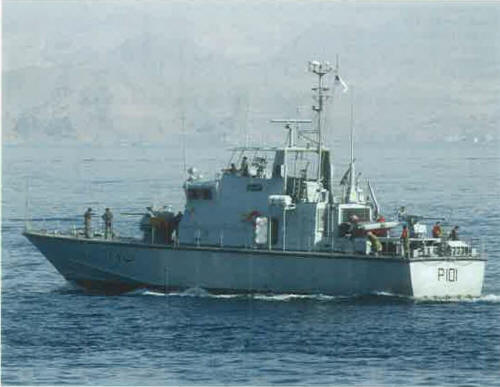

Al Hussein 2006

Ships


Name No Yard No Builder Laid down Launched Comp Fate
الحسين [Al Hussein] P101   Vosper, Portchester, UK   12/1988 12/1989 in service (2020)
الحسن [Al Hussan] P102   Vosper, Portchester, UK   1989 10.5.1990 in service (2020)
عبدلله [Abdullah] P103   Vosper, Portchester, UK   3/1989 10.12.1990 in service (2020)


Technical data


Displacement standard, t95
Displacement full, t

124

Length, m

26.6 pp 30.5 oa

Breadth, m

6.87

Draught, m

2.45

No of shafts2
Machinery

2 MTU 16V396 TB94 diesels

Power, h. p.

5800

Max speed, kts

32

Fuel, t

diesel oil 18

Endurance, nm(kts)

750(15)

Armament

1 x 2 - 30/75 GCM-A03-2, 1 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90

Electronic equipment

type 1007 radar, Radamec 2200 e/o system, 2x Stockade decoy RL, CANE100 CCS

Complement

16



Graphics


<i>Al Hussein</i> 2006
Al Hussein 2006


Project history

Ordered in 1988. GRP construction. All were commissioned in September 1991 when all three were delivered on a merchant vessel.

Modernizations

None.

Naval service

No significant events.
