SHIRATAKA 1 class torpedo boat (1900)





Shirataka Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
白鷹 [Shirataka]   629 Schichau, Elbing, Germany 1897 // 1.1899 10.6.1899 6/1900 stricken 1923


Technical data


Displacement normal, t

126

Displacement full, t
Length, m

46.5

Breadth, m

5.10

Draught, m

1.26

No of shafts

2

Machinery

2 VTE, 2 Schichau boilers

Power, h. p.

2600

Max speed, kts

28

Fuel, t

coal 30

Endurance, nm(kts)
Armament

3 x 1 - 47/30 21/2pdr Hotchkiss Mk I, 3 x 1 - 350 TT

Complement

26



Standard scale images

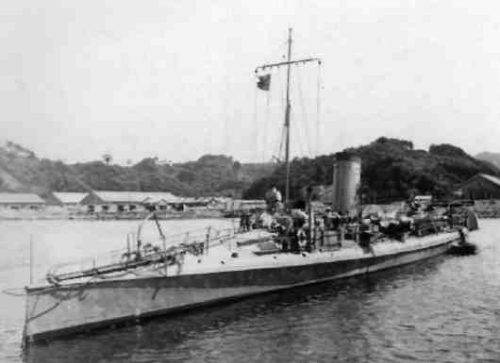

<i>Shirataka</i> 1900
Shirataka 1900


Graphics


<i> Shirataka</i> <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Shirataka Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Built in 1897-1898 in Germany by Schichau under Post-war program of 1896-1897, assembled in Japan by Mitsubishi in 1.1899-4/1900.

Modernizations

1905: - 3 x 1 - 47/30; + 1 x 1 - 76/40 Armstrong N, 2 x 1 - 57/40 6pdr Hotchkiss Mk I

Naval service

No significant events.
