67-GO 2 class torpedo boats (1903 - 1904)





75-go

Ships


Names Builders Commissioned Losses Transfers Discarding

第67水雷艇 - 第75水雷艇 [67-go - 75-go]

Yokosuka K K: 67-go - 69-go

Yokosuka K K, Sasebo K K, Kawasaki, Kobe: 70-go - 75-go

1903: 67-go - 73-go

1904: 74-go, 75-go

69-go (15.5.1905)

none

1922: 67-go, 68-go

1923: 70-go - 75-go


Technical data


Displacement normal, t

89
Displacement full, t
Length, m

40.1
Breadth, m

4.90
Draught, m

1.30
No of shafts

1
Machinery

1 VTE, 2 Yarrow boilers
Power, h. p.

1200
Max speed, kts

23.5
Fuel, t

coal 26.5
Endurance, nm(kts)
Armament

2 x 1 - 47/40 3pdr Hotchkiss Mk I, 1 - 350 TT (bow), 2 x 1 - 350 TT
Complement

24


Graphics

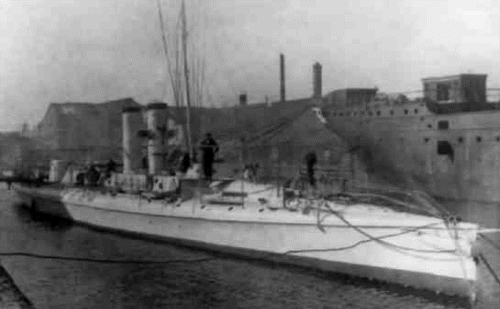

<i> 75-go</i>
75-go


Project history

Built in Japan on different yards in 1901-1904 under the modified Yarrow design.

Modernizations

None.

Naval service 69-go was lost 28.5.1905 during Tsushima battle she has been rammed by destroyer Akatsuki (former Russian Reshitelny).

69-go was lost 28.5.1905 during Tsushima battle: she has been rammed by destroyer Akatsuki (former Russian Reshitelny).
