"Vickers - Kawasaki" 3 class submarine (13-GO) (1912)

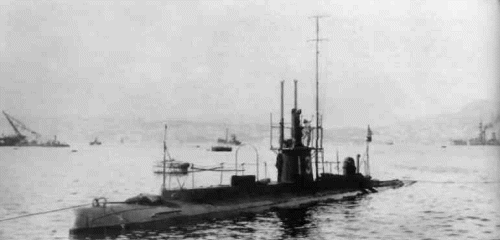

13-go
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 第13号艦 [13-go], 11.1924- 波6 [HA6] | Kawasaki, Kobe | 3.1910 | 18.7.1912 | 9.1912 | stricken 12.1928 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement normal, t | 304 / 340 |
| Length, m | 38.1 pp 38.6 oa |
| Breadth, m | 3.80 |
| Draught, m | 3.10 |
| No of shafts | 1 |
| Machinery | 1 petrol engine / 1 electric motor |
| Power, h. p. | 1000 / 300 |
| Max speed, kts | 10.8 / 8 |
| Fuel, t | petrol 18 |
| Endurance, nm(kts) | |
| Armament | 2 - 450 TT (bow, 2) |
| Complement | 26 |
| Diving depth operational, m | 30 |
Standard scale images
13-go 1920
Graphics
13-go
Project history
Vickers/Kawasaki type. Built by Kawasaki in Kobe under the 1910 programme. The design was developed on the basis of English C type submarines. Experimental ship. Single hull.
Modernizations
None.
Naval service
No significant events.
