"Kaichu 1" 2 class submarines (19-GO) (1919)





RO11

Ships


Name No Yard No Builder Laid down Launched Comp Fate
第19号艦 [19-go], 11.1924- 呂11 [RO11]     Kure K K 8.1916 15.10.1917 7.1919 stricken 1931
第20号艦 [20-go], 11.1924- 呂12 [RO12]     Kure K K 9.1916 1.12.1917 9.1919 stricken 1931


Technical data


Displacement standard, t
Displacement normal, t

735 / 1030

Length, m

69.2

Breadth, m

6.40

Draught, m

3.40

No of shafts

2

Machinery

2 Sulzer diesels / 2 electric motors

Power, h. p.

2600 / 1200

Max speed, kts

18 / 9

Fuel, t

diesel oil 60

Endurance, nm(kts)4000(10) / 85(4)
Armament

1 x 1 - 76/23 41-shiki, 2 x 1 - 7.7/80, 6 - 450 TT (4 bow, 2 side drop-collars, 10)

Complement

44

Diving depth operational, m30


Standard scale images


<i>19-go</i> 1921
19-go 1921


Graphics

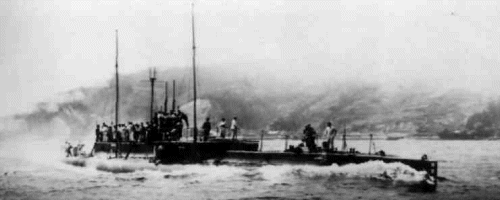

<i> RO11</i>
RO11


Project history

Kaichu (1) (medium Navy design No1) type. Designed in Japan in 1916 on the basis of Schneider-Laubeuf French submarines. In their construction peculiarities of Far East theatre for the first time have been considered. Submarines besides transverse bulkheads had longitudinal ones, that theoretically should raise their damage tolerance, but in practice it has made them only extremely tight and inconvenient for habitability. Diesels were delivered by Sulzer from neutral Switzerland. Double-hulled.

Boats of Kaidai 1 class as a whole have been recognised successful, however they have become operational already after the First World War.

Modernizations

None.

Naval service

No significant events.
