I503 ex-Italian submarine (1939 / 1945)





I503

Ships


Name No Yard No Builder Laid down Launched Comp Fate
UIT24 (ex-UIT24, ex-Commandante Cappellini), 7.1945- 伊503 [I503]     OTO, Muggiano, Italy 4.1938 14.5.1939 9/1939 // 5.1945 surrendered 8.1945, scuttled 15.4.1946


Technical data


Displacement standard, t

947

Displacement normal, t

1043 / 1290

Length, m

73.0

Breadth, m

7.19

Draught, m

5.10

No of shafts

2

Machinery

2 Fiat diesels / 2 CRDA electric motors

Power, h. p.

3600 / 1100

Max speed, kts

17.4 / 8

Fuel, t

diesel oil 108

Endurance, nm(kts)8000(8) / 120(3)
Armament

1 x 2 - 20/65 C/38, 8 - 533 TT (4 bow, 4 stern, 16)

Electronic equipmentFuMO 30 radar, sonar, hydrophone, FuMB 3 Bali, FuMB 6 Palau ECM suites
Complement57
Diving depth operational, m100


Standard scale images


<i>I503</i> 1945
I503 1945


Graphics

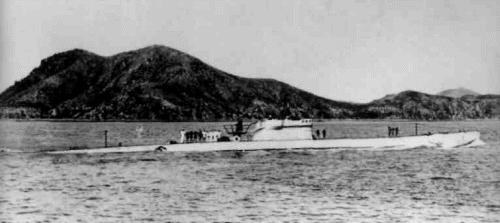

<i> I503</i>
I503


Project history

After capitulation of Germany all being in Japan German submarines 8-10.5.1945 were transferred under Japanese control and after assimilation of ships by new crews entered service. 15.7.1945 they have replaced old, still German numbering on accepted in the IJN. It is interesting, that two of these submarines, former Italian Comandante Cappellini and Luigi Torelli, already were once captured by Japanese 10.9.1943, after capitulation of Italy. Both boats then have transferred to Germany for usage as transports.

Modernizations

None.

Naval service

I503 was scuttled by Americans 5.4.1946.
