7-GO minesweeping boats (1973-1975)





8-go 1979

Ships


Names Builders Commissioned Losses Transfers Discarding

MSB707-712 1号-6号 [7-go-12-go]

Hitachi, Kanagawa: MSB707, 710, 711

NKK, Tsurumi: MSB708, 709, 712

1973: MSB707, 708

1974: MSB709, 710

1975: MSB711, 712

none

none

1992: MSB707, 708

1996: MSB709, 710

1997: MSB711, 712



Technical data


Displacement standard, t

50

Displacement full, t

58

Length, m

22.5

Breadth, m

5.40

Draught, m

1.00

No of shafts

2

Machinery

2 Mitsubishi 4ZV20MA/MC diesels

Power, h. p.

480

Max speed, kts

11

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

53-shiki mechanical or A Mk 6b acoustic sweeping gear

Electronic equipment

none

Complement

10



Standard scale images

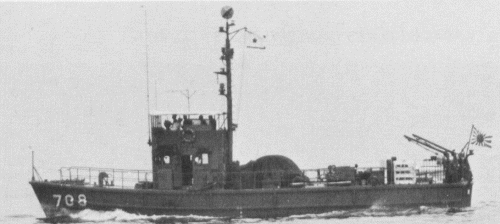

<i>7-go </i>1980
7-go 1980


Graphics


<i>8-go </i>1979
8-go 1979


Project history

Wooden minesweeping boats built as replacement for older 1-go class.

Modernizations

None.

Naval service

No significant events.
