TSUGARU minelayer (1941)





  Tsugaru

Ships


Name No Yard No Builder Laid down Launched Comp Fate
津軽 [Tsugaru]     Yokosuka K K 7/1939 5.6.1940 10.1941 sunk 29.6.1944


Technical data


Displacement standard, t

4000

Displacement normal, t4400
Length, m113.6 pp 121.0 wl 124.5 oa
Breadth, m15.6
Draught, m4.92
No of shafts2
Machinery2 sets geared steam turbines, 4 Kampon boilers
Power, h. p.9000
Max speed, kts

20

Fuel, toil
Endurance, nm(kts)9000(10)
Armament

2 x 2 - 127/40 89-shiki, 2 x 2 - 25/60 96-shiki, 600 mines, 1 catapult, 1 seaplane (E7K, E8N, F1M, E13A, E14Y)

Electronic equipment93-shiki sonar
Complement445


Graphics

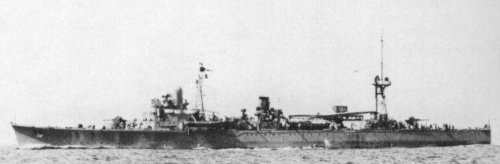

  <i> Tsugaru</i>
  Tsugaru


Project history

Built under 3rd Supplementary programme of 1937. Development of Okinoshima, differed by armament structure: at the expense of fitting of lighter dual-purpose 127mm guns instead of 140mm, mine capacity has been raised from 500 to 600. Standard seaplane was E7K.

Modernizations

1943-1944: - 2 x 2 - 25/60, 1 seaplane, 1 catapult; + 7 x 3 - 25/60 96-shiki, 4 x 1 - 25/60 96-shiki, 3-shiki 1-go radar (presumably), 93-shiki hydrophone

Naval service

5.8.1943 Tsugaru was damaged by US submarine Silversides, 21.6.1944 she was damaged by Dutch submarine KXIV, 29.6.1944 she was sunk W off Morotai by US submarine Darter.
