Misago 1970

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
かり [Kari]	PC301		Fujinagata, Osaka	1.1956	26.9.1956	2/1957	discarded 3.1977
きじ [Kiji]	PC302		Iino, Maizuru	12.1955	11.9.1956	1/1957	discarded 3.1977
たか [Taka]	PC303		Fujinagata, Osaka	1.1956	17.11.1956	3/1957	discarded 3.1977
わし [Washi]	PC304		Iino, Maizuru	12.1955	12.11.1956	3/1957	discarded 3.1977
かもめ [Kamome]	PC305		Uraga, Yokosuka	1.1956	3.9.1956	1/1957	discarded 3.1977
つばめ [Tsubame]	PC306		Kure Jukogyo, Kure	3.1956	10.10.1956	1/1957	discarded 5.1977

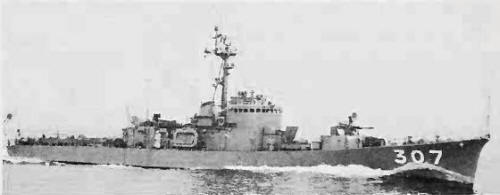

みさご [Misago]	PC307		Uraga, Yokosuka	1.1956	1.11.1956	2/1957	discarded 12.1977

Technical data

Displacement standard, t	PC301-304: 310 PC305-307: 330
Displacement full, t	PC301-304: 340 PC305-307: 360
Length, m	PC301-304: 56.0 PC305-307: 54.0
Breadth, m	PC301-304: 6.50 PC305-307: 6.60
Draught, m	2.10
No of shafts	2
Machinery	PC301-304: 2 Kawasaki - MAN V8V22/30 diesels PC305-307: 2 Mitsui - Burmeister & Wain 635VBU-45 diesels
Power, h. p.	4000
Max speed, kts	20
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	PC301-304: 1 x 2 - 40/60 Mk 1, 1 x 24 - 178 Hedgehog Mk 10 ASWRL, 2 DCT, 2 DCR PC305-307: 1 x 2 - 40/60 Mk 1, 1 x 24 - 178 Hedgehog Mk 10 ASWRL, 2 DCR
Electronic equipment	SPS-5B radar, SQS-11A sonar
Complement	70

Standard scale images

Graphics

Project history

Authorized under the 1954 programme. In effect they were updated versions of the wartime US concept.

Modernizations

None.

Naval service

No significant events.
