HAYABUSA submarine chaser (1957)

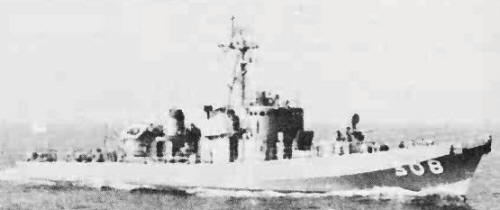

Hayabusa 1972

Ships


Name No Yard No Builder Laid down Launched Comp Fate
はやぶさ [Hayabusa] PC308   Mitsubishi, Nagasaki 5.1956 20.11.1956 6/1957 yacht 10.1975


Technical data


Displacement standard, t

370

Displacement full, t

~410

Length, m

58.0

Breadth, m

7.80

Draught, m

2.00

No of shafts

3

Machinery

CODAG: 2 Mitsui - Burmeister & Wain 1222VBU-34V diesels, 1 Mitsubishi MUK-1 gas turbine

Power, h. p.

4000 + 5000 = 9000

Max speed, kts

26

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

1 x 2 - 40/60 Mk 1, 1 x 24 - 178 Hedgehog Mk 10 ASWRL, 2 DCT, 2 DCR

Electronic equipment

SPS-5B radar, SQS-11A sonar

Complement

75



Standard scale images


<i>Hayabusa </i>1960
Hayabusa 1960


Graphics


<i>Hayabusa </i>1972
Hayabusa 1972


Project history

Authorized under the 1954 programme, Hayabusa had a unique machinery arrangement with a gas turbine on the centre shaft.

Modernizations

1972: gas turbine was removed (4000hp, 20kts).

Naval service

She was converted to a yacht (ASY91) at Yokohama Yacht Co in 1977-78, when she was disarmed and new enlarged superstructure added. Painted white overall, she was deleted in 1987.
