Jintsu 2008

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
あぶくま [Abukuma]	DE229		Mitsui, Tamano	17.3.1988	21.12.1988	12.12.1989	in service (2019)

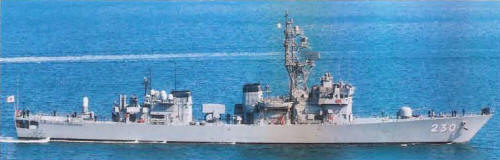

じんつう [Jintsu]	DE230		Hitachi, Maizuru	14.4.1988	31.1.1989	28.2.1990	in service (2019)
おおよど [Oyodo]	DE231		Mitsui, Tamano	8.3.1989	19.12.1989	23.1.1991	in service (2019)
せんだい [Sendai]	DE232		Sumitomo, Uraga	14.4.1989	26.1.1990	15.3.1991	in service (2019)
ちくま [Chikuma]	DE233		Hitachi, Maizuru	14.2.1991	22.1.1992	24.2.1993	in service (2019)
とね [Tone]	DE234		Sumitomo, Uraga	8.2.1991	6.12.1991	8.2.1993	in service (2019)

Technical data

Displacement standard, t	2050
Displacement full, t	2550
Length, m	109.0
Breadth, m	13.4
Draught, m	3.80 hull
No of shafts	2
Machinery	CODOG: 2 Kawasaki-Rolls-Royce Spey SM-1A gas turbines / 2 Mitsubishi S12U MTK diesels
Power, h. p.	27000 / 6000
Max speed, kts	27
Fuel, t	diesel / gas turbine oil
Endurance, nm(kts)
Armament	2 x 4 Harpoon SSM (8 RGM-84C), 1 x 8 ASROC ASuR (8 RUR-5), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 6 - 20/76 Mk 15 Phalanx, 2 x 3 - 324 HOS-301 TT
Electronic equipment	OPS-14C, OPS-28D, FCS-2-21, Mk 90 radars, OQS-8 sonar, NOLQ-6C, OLT-3 ECM suites, 2x SRBOC Mk 36 decoy RL, OYQ-6 CCS
Complement	120

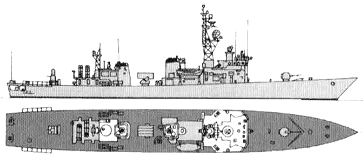

Standard scale images

Graphics

Project history

A much larger and more capable class of escorts, comparable to the earlier smaller destroyers. Two ordered in successive estimates 1987-80. Fitted for towed-array sonar but never carried.

Modernizations

late 1990s, both, to reduce topweight: - 2 x 2 Harpoon SSM (2 x 2 totally)

2010s, some: - NOLQ-6C ECM suite; + NOLR-8 ECM suite

Naval service

No significant events.
