HYUGA aircraft carriers (2009-2011)
Hyuga 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| ひゅうが [Hyuga] | DDH181 | IHI, Yokohama | 11.5.2006 | 23.8.2007 | 18.3.2009 | in service (2019) | |
| いせ [Ise] | DDH182 | IHI, Yokohama | 30.5.2008 | 21.8.2009 | 16.3.2011 | in service (2019) |
Technical data
| Displacement standard, t | 13950 |
|---|---|
| Displacement full, t | 19000 |
| Length, m | 180.0 wl 197.0 oa |
| Breadth, m | 22.0 wl 33.0 fd |
| Draught, m | 7.00 |
| No of shafts | 2 |
| Machinery | COGAG: 4 General Electric-IHI LM-2500 gas turbines |
| Power, h. p. | 100000 |
| Max speed, kts | 30 |
| Fuel, t | gas turbine oil |
| Endurance, nm(kts) | 6000(20) |
| Armament | 1 x 16 Mk 41 mod. 5 x4 ESSM SAM / ASROC VLA ASuR (VLS, 16 x4 RIM-162 / RUM-139, usually 16 RIM-162 + 12 RUM-139), 2 x 6 - 20/76 Mk 15 Block 1B Phalanx, 4 x 1 - 12.7/90, 2 x 3 - 324 HOS-303 TT, 11 helicopters (SH-60, MCH-101, officially 3 SH-60J, 1 MCH-101) |
| Electronic equipment | OPS-28D, OPS-20C, FCS-3 radars, OQS-21 sonar, NOLQ-3C ECM suite, 6x SRBOC Mk 36 decoy RL, ACDS CCS |
| Complement | 347 |
Air group
| Year | 2012, both |
|---|---|
| helicopters | 3 SH-60K, 1 MCH-101 |

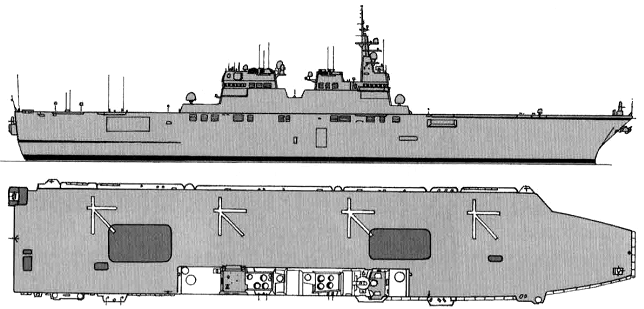

Standard scale images
Hyuga 2010
Graphics

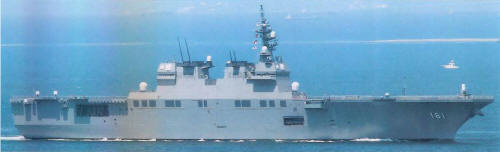

Hyuga 2008
Aircraft facilities
(fd - 6,000m², ha - 2,340m² / ?m³): There are two aircraft elevators (20.0x10.0m fore and 20.0x13.0m aft) and four helicopter landing spots. There is 120.0x(19.0-20.0)m hangar.
Project history
Designed to replace the Haruna class, with first unit requested under the FY04 budget and the second under FY06. The initial design had flight deck space fore and aft, with superstructure amidships incorporating a hangar and with the stack uptakes offset to starboard, but this was modified to resemble European small aircraft carriers, with the exception of not having a ski-jump bow. Two aircraft elevators, four helicopter landing spots, and two sets of fin stabilizers are fitted. Are Link-16 compatible and carry the ORQ-1 datalink for helicopter control and communications. Outfitted with separate male and female living quarters and have additional space for 25 flag staff personnel, enabling the class to act as fleet command ships.
Modernizations
None.
Naval service
No significant events.
