SOYA large patrol vessel (1978)

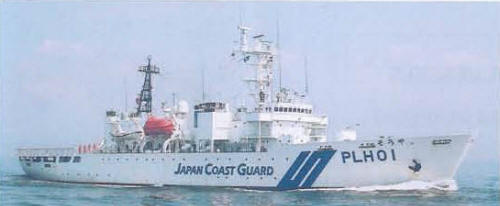

Soya 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| そうや [Soya] | PL01, 12.1985- PLH01 | NKK, Tsurumi | 12.9.1977 | 3.7.1978 | 22.11.1978 | in service (2019) |
Technical data
| Displacement standard, t | 3700 |
|---|---|
| Displacement normal, t | 4089 |
| Length, m | 98.6 |
| Breadth, m | 15.6 |
| Draught, m | 5.20 |
| No of shafts | 2 |
| Machinery | 2 NKK-Pielstick 12PC2-5 V400 diesels |
| Power, h. p. | 15600 |
| Max speed, kts | 21 |
| Fuel, t | diesel oil 650 |
| Endurance, nm(kts) | 5700(18) |
| Armament | 1 x 1 - 40/60 Mk 3, 1 x 1 - 20/70 Mk 10, 1 helicopter (Bell 212) |
| Electronic equipment | 2x JMA 1596, JMA 1576 radars |
| Complement | 71 |
Standard scale images
Soya 1980
Graphics
Soya 2008
Project history
Has icebreaking abilities. The armament is not normally fitted.
Modernizations
None.
Naval service
No significant events.
