SHIMAGIRI patrol craft (1985)

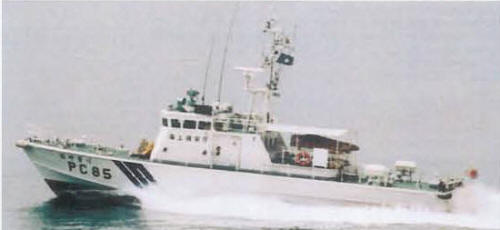

Hayagiri 2003
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
PC83 しまぎり [Shimagiri] PC84 せとぎり [Setogiri], 2000- おきなみ [Okinami] PC85 はやぎり [Hayagiri] |
Hitachi, Kanagawa: PC83, 84 Mitsubishi, Shimonoseki: PC85 |
1985: PC83-85 |
none |
none |
2018: PC83-85 |
Technical data
| Displacement standard, t | 40 |
|---|---|
| Displacement full, t | 50 |
| Length, m | 23.0 |
| Breadth, m | 5.30 |
| Draught, m | 1.90 |
| No of shafts | 3 |
| Machinery | 3 Mitsubishi 12V175 RTC diesels |
| Power, h. p. | 3000 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 250(21) |
| Armament | PC83, 84: 1 x 1 - 12.7/90 PC85: 1 x 1 - 20/70 Mk 10 |
| Electronic equipment | FRA 10 Mk 2 radar |
| Complement | 10 |
Graphics
Hayagiri 2003
Project history
Small patrol craft. Aluminium hulls.
Modernizations
None.
Naval service
No significant events.
