REBUN medium patrol vessels (1951)





Hirado 1972

Ships


Name No Yard No Builder Laid down Launched Comp Fate
れぶん [Rebun] PM04   Hitachi, Sakurajima     2.1951 deleted 10.1979
いき [Iki] PM05   Hitachi, Sakurajima     3.1951 deleted 7.1979
おき [Oki] PM06   Mitsui, Tamano     2.1951 deleted 10.1979
げんかい [Genkai] PM07   Mitsui, Tamano     3.1951 deleted 1.1979
はちじよう [Hachijo] PM08   Mitsubishi, Kobe     3.1951 deleted 9.1979
あまくさ [Amakusa] PM09   Mitsubishi, Kobe     3.1951 deleted 1.1980
おくしり [Okushiri] PM10   Hitachi, Mukojima     6.1951 deleted 2.1980
くさかき [Kusakaki] PM11   Hitachi, Mukojima     7.1951 deleted 12.1979
りしり [Rishiri] PM12   Fujinagata, Osaka     6.1951 deleted 8.1979
のと [Noto] PM13   Fujinagata, Osaka     8.1951 deleted 10.1979
へくら [Hekura] PM14   Ishikawajima-Harima, Harima     6.1951 deleted 8.1979
みくら [Mikura] PM15   Ishikawajima-Harima, Harima     7.1951 deleted 10.1979
こしき [Koshiki] PM16   Mitsubishi, Hiroshima     8.1951 deleted 12.1979
ひらど [Hirado] PM17   Mitsubishi, Hiroshima     9.1951 deleted 12.1980


Technical data


Displacement standard, t387
Displacement normal, t

495

Length, m

52.4

Breadth, m

8.10

Draught, m

2.61

No of shafts

2

Machinery

2 diesels

Power, h. p.

1300

Max speed, kts

14.6

Fuel, t

diesel oil

Endurance, nm(kts)3430(12)
Armament

none

Electronic equipmentnone
Complement40


Standard scale images


<i>Rebun </i>1955
Rebun 1955


Graphics

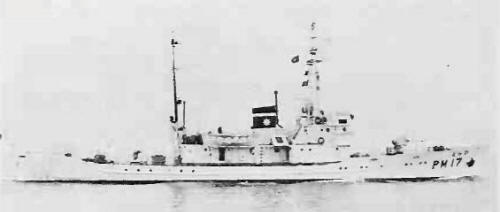

<i>Hirado </i>1972
Hirado 1972


Project history

Medium patrols of 450t class.

Modernizations

1953, all: + 1 x 1 - 76/50 Mk 22, 1 x 1 - 20/70 Mk 10, radar

Naval service

No significant events.
