OJIKA large patrol vessels (1991-2000)





Kurikoma 2008

Ships


Name No Yard No Builder Laid down Launched Comp Fate
おじか [Ojika], 10.2000- えりも [Erimo] PL02   Mitsui, Tamano 28.9.1990 23.4.1991 31.10.1991 deleted 1.2017, to Malaysia (Pekan)
くだか [Kudaka] PL03   Hakodate DD 9.9.1993 10.5.1994 25.10.1994 in service (2019)
さつま [Satsuma], 1999- やひこ [Yahiko] PL04   Sumitomo, Uraga 21.9.1994 29.5.1995 26.10.1995 in service (2019)
はかた [Hakata], 12.2008- でじま [Dejima] PL05   Ishikawajima, Tokyo 22.10.1997 6.7.1998 26.11.1998 in service (2019)
でじま [Dejima], 1.2005- くりこま [Kurikoma] PL06   Mitsui, Tamano 4.9.1998 28.6.1999 29.10.1999 in service (2019)
さつま [Satsuma] PL07   Kawasaki, Kobe 1.9.1998 3.6.1999 29.10.1999 in service (2019)
もとぶ [Motobu], 1.2009- とさ [Tosa] PL08   Sasebo HI 8.9.1999 5.6.2000 31.10.2000 in service (2019)


Technical data


Displacement standard, t

02-04: 1883

05-08: 1930

Displacement normal, t

02-04: 2006

05-08: 2055

Length, m

02-04: 87.0 pp 91.4 oa

05-08: 93.5

Breadth, m

02-04: 11.0

05-08: 11.5

Draught, m

02-04: 3.50

05-08: 4.00

No of shafts

2

Machinery

2 Fuji 8S40B diesels

Power, h. p.

7000

Max speed, kts

20

Fuel, t

diesel oil

Endurance, nm(kts)

8000(14)

Armament

02: 1 x 3 - 20/76 JM-61-MB Sea Vulcan, helicopter deck

03-08: 1 x 1 - 35/90 type 87, 1 x 3 - 20/76 JM-61-MB Sea Vulcan, helicopter deck

Electronic equipment

2x JMA 1596 radars

Complement

38



Standard scale images


<i>Erimo</i> 2010
Erimo 2010


Graphics

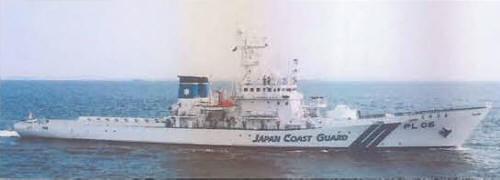

<i>Kurikoma </i>2008
Kurikoma 2008


Project history

Have a cargo hold under the helicopter pad. All have a computerized rescue data system, special display room, helicopter platform and fin stabilization. There is a stern dock for an "unsinkable" rescue craft.

Modernizations

None.

Naval service

No significant events.
