NOJIMA large patrol vessels (1962-1963)

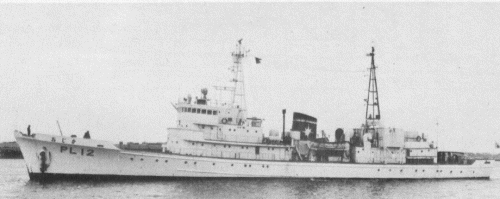

Ojika 1977
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| のじま [Nojima] | PL11 | Uraga Dock, Tokyo | 12.2.1962 | 30.4.1962 | discarded 8.1989 | ||
| おじか [Ojika] | PL12 | Uraga Dock, Tokyo | 10.6.1963 | 10.6.1963 | discarded 9.1991 |
Technical data
| Displacement standard, t | 950 |
|---|---|
| Displacement normal, t | 1113 |
| Length, m | 69.0 |
| Breadth, m | 9.20 |
| Draught, m | 3.20 |
| No of shafts | 2 |
| Machinery | 2 Uraga-Sulzer 6MD42 diesels |
| Power, h. p. | 3000 |
| Max speed, kts | 18.1 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 8200(16.5) |
| Armament | none |
| Electronic equipment | radars |
| Complement | 73 |
Standard scale images
Nojima 1965
Graphics
Ojika 1977
Project history
Built for training and ocean rescue work and used as patrol and weather ships.
Modernizations
None.
Naval service
No significant events.
