Suganami 2008

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
PC86 なつぎり [Natsugiri] PC87 すがなみ [Suganami]	Sumidagawa, Tokyo: PC86, 87	1990: PC86, 87	none	none	2019: PC86, 87

Technical data

Displacement standard, t	54
Displacement full, t	70
Length, m	24.8 pp 27.0 oa
Breadth, m	5.60
Draught, m	1.20
No of shafts	2
Machinery	2 MTU 12V396 TB83 diesels
Power, h. p.	3000
Max speed, kts	27.5
Fuel, t	diesel oil
Endurance, nm(kts)	200(27)
Armament	none
Electronic equipment	radar
Complement	9

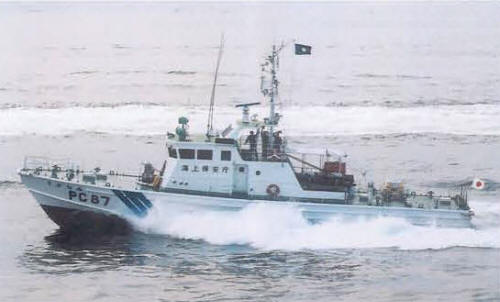

Graphics

Project history

Put in the FY 88 budget for service in the Yokosuka area as a result of the poor performance of earlier 23m-series patrol craft during the rescue efforts after the collision of the submarine Nadashio with a fishing boat. Have a longer hull and greater propeller tip clearance to reduce pitching. Are painted white.

Modernizations

None.

Naval service

No significant events.
