MATSUYUKI patrol craft (1964-1971)





Matsuyuki 1975

Ships


Names Builders Commissioned Losses Transfers Discarding

PC40 まつゆき [Matsuyuki]

PC41 しまゆき [Shimayuki]

PC42 たまゆき [Tamayuki]

PC43 はまゆき [Hamayuki]

PC44 やまゆき [Yamayuki]

PC45 こまゆき [Komayuki]

PC46 うみぎり [Umigiri]

PC47 あさぎり [Asagiri]

PC48 はまぎり [Hamagiri]

PC49 さぎり [Sagiri]

PC50 せとぎり[Setogiri]

PC51 はやぎり [Hayagiri]

PC52 はまなみ [Hamanami]

PC53 まつなみ [Matsunami]

Hitachi, Kanagawa: PC40-47, 49-51

Sumidagawa Zosen: PC48, 52

1964: PC40

1966: PC41-43

1967: PC44, 45

1968: PC46, 47

1970: PC48-51

1971: PC52

none

none

1979: PC40

1981: PC41-43

1982: PC44, 45

1983: PC46, 47

1985: PC49-51

1993: PC48

1994: PC52



Technical data


Displacement standard, t

PC40-52: 51

PC53: 45

Displacement full, t

PC40-47, 49-51: 64

PC48, 52: 65

PC53: 60

Length, m

PC40-52: 21.0

PC53: 25.0

Breadth, m

PC40-52: 5.10

PC53: 6.00

Draught, m

PC40-47, 49-51: 0.95

PC48, 52: 1.11

PC53: 2.80

No of shafts

2

Machinery

PC40-47, 49-53: 2 Ikegai-Mercedes-Benz MB820Db diesels

PC48: 2 Mitsubishi 12DH20TK diesels

Power, h. p.

PC40-47, 49-53: 2200

PC48: 1140

Max speed, kts

PC40-47, 49-51: 26.5

PC48: 14.6

PC52: 20

PC53: 20.8

Fuel, t

diesel oil

Endurance, nm(kts)

PC40-47, 49-51: 240(24)

PC48, 52: 270(12)

Armament

1 x 1 - 12.7/90

Electronic equipment

MD808 radar

Complement

10



Graphics

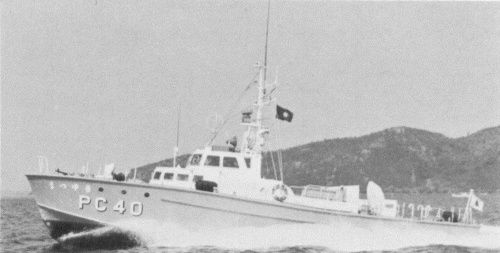

<i>Matsuyuki </i>1975
Matsuyuki 1975


Project history

Small patrol boats. PCs40-47 and 49-51 were built of light alloy frames with wooden hulls. PC48 and 52 were built of steel. PC53 was built completely of light alloy.

Modernizations

None.

Naval service

No significant events.
