MATSUURA small patrol vessels (1961-1967)
Natori 1974
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| まつうら [Matsuura] | PS60, 1968- PM60 | Osaka Zosen | 3.1961 | deleted 10.1986 | |||
| せんだい [Sendai] | PS61, 1968- PM61 | Osaka Zosen | 4.1962 | deleted 5.1988 | |||
| あまみ [Amami] | PS62, 1968- PM62 | Hitachi, Mukojima | 3.1965 | deleted 9.1992 | |||
| なとり [Natori] | PS63, 1968- PM63 | Hitachi, Mukojima | 1.1966 | deleted 9.1995 | |||
| からつ [Karatsu] | PS64, 1968- PM64 | Hitachi, Mukojima | 3.1967 | deleted 10.1995 |
Technical data
| Displacement standard, t | 425 |
|---|---|
| Displacement full, t | 455 |
| Length, m | 55.3 |
| Breadth, m | 7.00 |
| Draught, m | 2.30 |
| No of shafts | 2 |
| Machinery | PS60, 61: 2 Ikegai 6MSB31S diesels PS62, 63: 2 Ikegai 6MSB31HS diesels PS64: 2 Ikegai 6MA31X diesels |
| Power, h. p. | PS60, 61: 1400 PS62, 63: 1800 PS64: 2600 |
| Max speed, kts | PS60, 61: 16.5 PS62, 63: 16.8 PS64: 17 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3500(12) |
| Armament | 1 x 1 - 20/70 Mk 10 |
| Electronic equipment | radar |
| Complement | 40 |
Standard scale images
Matsuura 1961
Graphics

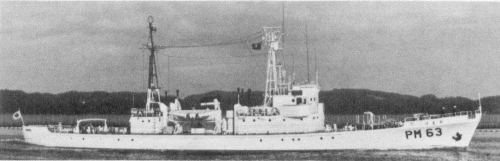

Natori 1974
Project history
Small patrols of 350M-2 class, later rerated as medium patrols.
Modernizations
None.
Naval service
No significant events.
