KOJIMA large patrol vessel (1964)

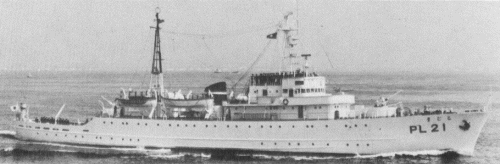

Kojima 1977
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| こじま [Kojima] | PL21 | IHI, Kure | 20.5.1964 | deleted 1993 |
Technical data
| Displacement standard, t | 1100 |
|---|---|
| Displacement normal, t | 1201 |
| Length, m | 69.6 |
| Breadth, m | 10.3 |
| Draught, m | 3.20 |
| No of shafts | 1 |
| Machinery | 1 Uraga-Sulzer 7MD51 diesels |
| Power, h. p. | 2600 |
| Max speed, kts | 17 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 6000(13) |
| Armament | 1 x 1 - 76/50 Mk 22, 1 x 1 - 40/60 Mk 3, 1 x 1 - 20/70 Mk 10 |
| Electronic equipment | 2 radars |
| Complement | 60 + 47 trainees |
Standard scale images
Kojima 1970
Graphics
Kojima 1977
Project history
Maritime Safety Academy training ship.
Modernizations
early 1980s: - 1 x 1 - 76/50; + 1 x 1 - 12.7/90
Naval service
No significant events.
