Isokaze 2003

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
CL01 いそかぜ [Isokaze] CL02 はやかぜ [Hayakaze] CL03 なだかぜ [Nadakaze] CL04 ことかぜ [Kotokaze]	Yokohama Yacht: CL01-04	1989: CL01, 02 1991: CL03, 04	none	none	2016: CL01, 02 2017: CL03, 04

Technical data

Displacement standard, t	19
Displacement full, t	21
Length, m	17.0
Breadth, m	4.30
Draught, m	1.00
No of shafts	2
Machinery	01, 02: 2 Nissan RD10-TA06 diesels 03, 04: 2 Mitsubishi 256Y-MTK diesels
Power, h. p.	01, 02: 900 03, 04: 1400
Max speed, kts	01, 02: 20 03, 04: 29
Fuel, t	diesel oil
Endurance, nm(kts)	01, 02: 180(19) 03, 04: 150(29)
Armament	none
Electronic equipment	radar
Complement	01, 02: 5 03, 04: 6

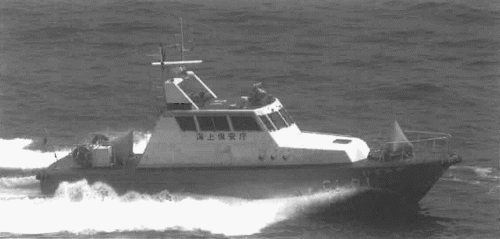

Graphics

Project history

Revised Yamayuri design, with higher superstructure and finer hull lines. Second pair is considered a separate class, with greater displacement and more powerful engines.

Modernizations

None.

Naval service

No significant events.
