HIDA large patrol vessels (2006-2008)

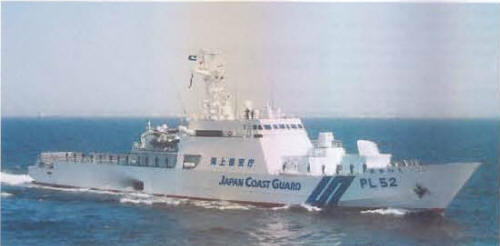

Akaishi 2007
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| ひだ [Hida] | PL51 | Mitsubishi, Shimonoseki | 21.1.2005 | 9.8.2005 | 18.4.2006 | in service (2019) | |
| あかいし [Akaishi] | PL52 | Mitsubishi, Shimonoseki | 21.1.2005 | 21.10.2005 | 18.4.2006 | in service (2019) | |
| きそ [Kiso] | PL53 | IHI, Yokohama | 15.3.2006 | 17.8.2007 | 11.3.2008 | in service (2019) |
Technical data
| Displacement standard, t | 1800 |
|---|---|
| Displacement normal, t | 2000 |
| Length, m | 95.0 |
| Breadth, m | 12.6 |
| Draught, m | 4.00 hull 6.00 max |
| No of shafts | 4 waterjets |
| Machinery | 4 MTU 20V1163 TB93 diesels |
| Power, h. p. | |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 40/60 Mk 3, 1 x 3 - 20/76 JM-61-MB Sea Vulcan, helicopter deck |
| Electronic equipment | 2x JMA radars, e/o director |
| Complement |
Standard scale images
Hida 2010
Graphics
Akaishi 2007
Project history
Long, flush deck aft serves as a helicopter platform, though the class does not have a hangar.
Modernizations
None.
Naval service
No significant events.
