UJI gunboat (1903)
Uji
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 宇治 [Uji] | Kure K K | 9.1902 | 14.3.1903 | 8.1903 | stricken 1932 |
Technical data
| Displacement normal, t | 620 |
|---|---|
| Displacement full, t | |
| Length, m | 55.1 pp 57.8 oa |
| Breadth, m | 8.41 |
| Draught, m | 2.13 |
| No of shafts | 2 |
| Machinery | 2 VTE, 2 Kampon boilers |
| Power, h. p. | 1000 |
| Max speed, kts | 13 |
| Fuel, t | coal 180 |
| Endurance, nm(kts) | |
| Armament | 4 x 1 - 76/40 Armstrong N, 6 x 1 - 6.5/115 |
| Complement | 86 |
Standard scale images
Uji 1904
Graphics

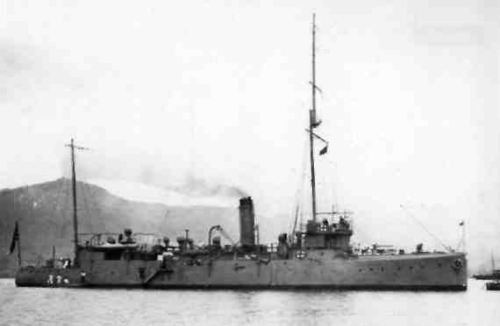

Uji
Project history
Built under the 1896-1897 programme. Intended for river and inshore operations.
Modernizations
None.
Naval service
Uji was actually used as a colonial gunboat, in 1914 participated in operation against Tsingtao.
