SAGA gunboat (1912)
Saga
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 嵯峨 [Saga] | Sasebo K K | 1.1912 | 27.9.1912 | 11.1912 | sunk 22.1.1945 |
Technical data
| Displacement normal, t | 785 |
|---|---|
| Displacement full, t | 885 |
| Length, m | 63.6 pp 69.0 oa |
| Breadth, m | 8.99 |
| Draught, m | 2.21 |
| No of shafts | 3 |
| Machinery | 3 VTE, 2 Kampon boilers |
| Power, h. p. | 1600 |
| Max speed, kts | 15 |
| Fuel, t | coal 190 |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 120/45 3-shiki, 3 x 1 - 76/40 41-shiki, 3 x 1 - 6.5/115 |
| Complement | 98 |
Standard scale images
Saga 1918
Saga 1941
Graphics

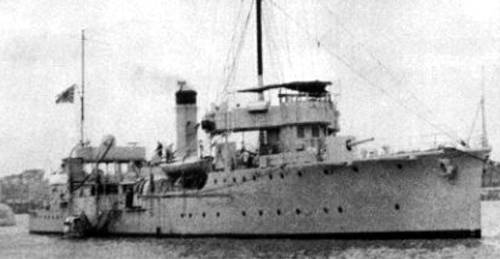

Saga
Project history
Gunboat for service in Chinese waters. Design was developed on the basis of 1st class gunboat Uji. In comparison with prototype, dimensions were increased and armament was strengthened. Saga was differed by unusual triple-shaft machinery.
Modernizations
1941: - 3 x 1 - 76/40, 3 x 1 - 6.5/115; + 3 x 1 - 76/40 11-shiki, 6 x 1 - 7.7/80
Naval service
Saga 26.9.1944 off Hong Kong was damaged on a mine, 22.1.1945 she was sunk at Hong Kong by US Army aircraft.
