HASHIDATE gunboats (1940 - 1941)





Hashidate

Ships


Name No Yard No Builder Laid down Launched Comp Fate
橋立 [Hashidate]     Sakurajima, Osaka 20.2.1939 23.12.1939 30.6.1940 sunk 22.5.1944
宇治 [Uji]     Sakurajima, Osaka 20.1.1940 26.9.1940 30.4.1941 surrendered 8.1945, to China 1946 (漳州 [Chang Chi])


Technical data


Displacement standard, t999
Displacement full, t

1110
Length, m

76.0 pp 78.5 wl 80.5 oa
Breadth, m

9.70
Draught, m

2.45
No of shafts

2
Machinery

2 sets geared steam turbines, 2 Kampon boilers
Power, h. p.

4600
Max speed, kts

19.5
Fuel, toil
Endurance, nm(kts)3460(14)
Armament

1 x 2 - 120/45 10-shiki, 1 x 1 - 120/45 10-shiki, 2 x 2 - 25/60 96-shiki
Complement

170


Standard scale images


<i>Hashidate</i> 1941
Hashidate 1941


Graphics

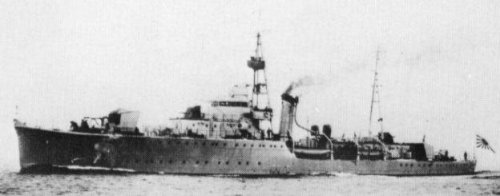

<i> Hashidate</i>
Hashidate


Project history

Built under 3rd Supplementary programme of 1937. Intended for operations in inshore waters and river mouths and had shallow draught.

Modernizations

1943 - 1944, both: - 2 x 2 - 25/60; + 2 x 3 - 25/60 96-shiki, 3 x 1 - 25/60 96-shiki, 2 DCT, presumably radar

Naval service

Hashidate was sunk 22.5.1944 by US submarine Picuda off Pratas Island. Uji was damaged 10.4.1945 on a mine, in 1945 she has surrendered to Allies at Shanghai and was transferred to China.
