ex-Chinese torpedo boat (1935 / 1939)
ex-Chinese MTB
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
i (ex-KUAI1 or 2) |
Thornycroft, Hampton, UK: 1 boat |
1935 / 1939: 1 boat |
none |
none |
1944: 1 boat |
Technical data
| Displacement normal, t | 14 |
|---|---|
| Displacement full, t | |
| Length, m | 16.8 |
| Breadth, m | 3.40 |
| Draught, m | 1.00 |
| No of shafts | 2 |
| Machinery | 2 petrol engines |
| Power, h. p. | 1500 |
| Max speed, kts | 38 |
| Fuel, t | petrol |
| Endurance, nm(kts) | 200(40) |
| Armament | 2 x 1 - 7.7/80, 2 - 450 TT |
| Complement | 5 |
Standard scale images

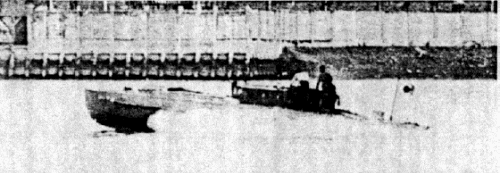

ex-Chinese MTB
Graphics
ex-Chinese MTB
Project history
Chinese MTB of CMB-55 design, fell into Japanese hands at Canton in 1938. Commissioned in 1939 as experimental MTB (number unknown).
Modernizations
None.
Naval service
No significant events.
