FIGHTING SHIPS OF THE WORLD
JAMAICA
COASTAL FORCES
SAVANNAH POINT patrol boats (1967-1970/1999-2000)

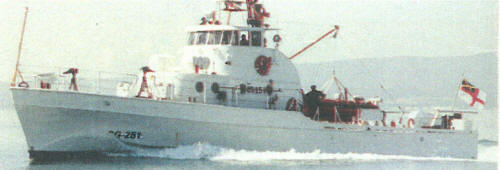

Savannah Point 1999
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
CG251 Savannah Point (ex-Point Nowell) CG252 Belmont Point (ex-Point Barnes) |
USCG Yard, Curtis Bay, USA: CG251, 252 |
1967 // 1999: CG251 1970 // 2000: CG252 |
None |
None |
~2006-08: CG251, 252 |
Technical data
| Displacement standard, t | 64 |
|---|---|
| Displacement full, t | 69 |
| Length, m | 25.3 |
| Breadth, m | 5.25 |
| Draught, m | 1.95 full |
| No of shafts | 2 |
| Machinery | 2 Caterpillar diesels |
| Power, h. p. | 1600 |
| Max speed, kts | 23 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1500(8) |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | SPS-64(v)1 radar |
| Complement | 10 |
Standard scale images
Savannah Point 2000
Graphics
Savannah Point 1999
Project history
Former USCG Point class cutters.
Modernizations
None.
Naval service
No significant events.
