GOVERNOLO steel gunboat (1896)
Governolo
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Governolo | R. Arsenale di Venezia | 4.1892 | 1.5.1894 | 5.1896 | discarded 11.1912 |
Technical data
| Displacement normal, t | 1203 |
|---|---|
| Displacement full, t | |
| Length, m | 56.4 pp |
| Breadth, m | 10.3 |
| Draught, m | 4.61 |
| No of shafts | 1 |
| Machinery | 1 VC, 3 cylindrical boilers |
| Power, h. p. | 1100 |
| Max speed, kts | 14 |
| Fuel, t | coal |
| Endurance, nm(kts) |
|
| Armament | 4 x 1 - 120/32 B(s.o.), 4 x 1 - 57/43 N, 2 x 1 - 37/25 H lungo, 2 x 1 - 11.4/94, 1 - 450 TT (beam) |
| Complement | 137 |
Standard scale images
similar Cariddi 1880
Graphics

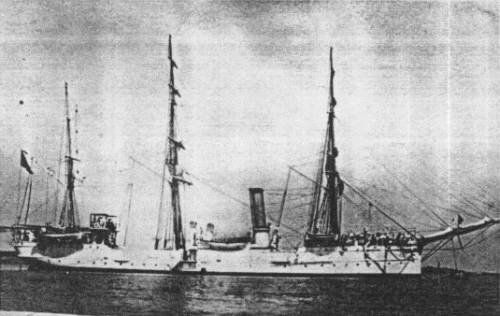

Governolo
Project history
Barque-rigged, copper-sheathed gunboat designed by Eng Insp Ernesto Martinez.
Modernizations
None.
Naval service
No significant events.
