ERMANNO CARLOTTO river gunboat (1921)

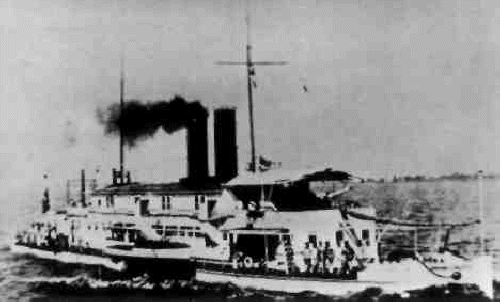

Ermanno Carlotto

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Ermanno Carlotto     Shanghai Dock, China   19.6.1918 3.1921 scuttled 9.9.1943


Technical data


Displacement normal, t218
Displacement full, t
Length, m

48.8

Breadth, m

7.50

Draught, m

0.92

No of shafts

2

Machinery

2 VTE, 2 Yarrow boilers

Power, h. p.

1100

Max speed, kts

14

Fuel, toil 56
Endurance, nm(kts)
Armament

2 x 1 - 76/40 Armstrong 1916, 4 x 1 - 6.5/115

Complement44


Standard scale images


<i>Ermanno Carlotto</i> 1943
Ermanno Carlotto 1943


Graphics


<i> Ermanno Carlotto</i>
Ermanno Carlotto


Project history

"Colonial" gunboat for service at Chinese rivers.

Modernizations

None.

Naval service

Ermanno Carlotto was scuttled by own crew at Shanghai 9.9.1943, raised by Japanese in November 1943 and commissioned by them as Narumi.
