AMMIRAGLIO MAGNAGHI corvette (1943 / 1946)

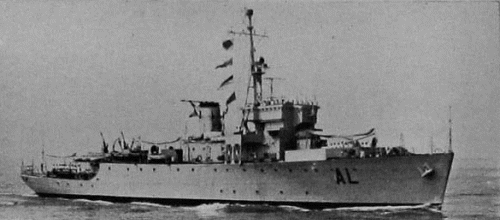

Alabarda 1952

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Ammiraglio Magnaghi (ex-Larne), 1948- Eritrea, 4.1950- Alabarda AL, 1953- F560   Lobnitz, Renfrew, UK 1.1943 20.9.1943 11.1943 // 6.1946 stricken 7.1968


Technical data


Displacement standard, t

990

Displacement full, t

1258

Length, m

68.6

Breadth, m

10.8

Draught, m

3.13 deep load

No of shafts

2

Machinery

2 VTE, 2 Admiralty 3-drum boilers

Power, h. p.

2400

Max speed, kts

16.5

Fuel, t

oil 230

Endurance, nm(kts)5000(10)
Armament

1 x 1 - 100/47 OTO 1937, 4 x 1 - 37/54 Breda 1939, 4 DCT, 2 DCR (90 - 92 in ASW role)

Electronic equipmenttype 271 or type 272 radar, type 128 sonar
Complement

85 - 138



Standard scale images


<i>Larne </i>1943
Larne 1943
<i>Alabarda </i>1963
Alabarda 1963


Graphics


<i>Alabarda </i>1952
Alabarda 1952


Project history

Ex-British minesweeper of Algerine class. Primarily she was taken as survey vessel Ammiraglio Magnaghi but soon reclassified as colonial corvette (in June 1946) and ASW corvette (in April 1950).

Modernizations

1954: - 4 x 1 - 37/54, radar; + 1 x 2 - 40/60 Mk 1, 2 x 1 - 40/60 Mk 3, SO-13 radar.

1956: - 1 x 1 - 100/47, 1 DCR

Naval service

No significant events.
