FR32 destroyers (1940 / ---)
FR32
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| FR32 (ex-Sirocco, ex-Le Corsaire) | F C de la Méditerranée, La Seyne, France | 3.1938 | 14.11.1939 | 6.1940 // --- | captured incomplete by Germany 9.9.1943 | ||
| FR33 (ex-L`Adroit, ex-Epée) | F C de la Méditerranée, La Seyne, France | 10.1936 | 26.10.1938 | 6.1940 // --- | captured incomplete by Germany 9.9.1943 | ||
| FR34 (ex-Lansquenet) | F C de la Gironde, Bordeaux, France | 12.1936 | 20.5.1939 | 6.1940 // --- | captured incomplete by Germany 9.9.1943 | ||
| FR35 (ex-Bison, ex-Le Filibustier) | F C de la Méditerranée, La Seyne, France | 3.1938 | 14.12.1939 | 6.1940 // --- | captured incomplete by Germany 9.9.1943 | ||
| FR36 (ex-Foudroyant, ex-Fleuret) | F C de la Méditerranée, La Seyne, France | 8.1936 | 28.7.1938 | 6.1940 // --- | captured incomplete by Germany 8.9.1943 | ||
| FR37 (ex-Le Hardi) | A C de la Loire, Nantes, France | 5.1936 | 4.5.1938 | 6.1940 // --- | captured incomplete by Germany 9.9.1943 |
Technical data
| Displacement standard, t | 1772 |
|---|---|
| Displacement full, t | 2577 |
| Length, m | 111.6 pp 117.2 oa |
| Breadth, m | 11.1 |
| Draught, m | 4.20 |
| No of shafts | 2 |
| Machinery | 2 sets Rateau-Bretagne geared steam turbines, 4 Sural-Norguet boilers FR32: 2 sets Parsons geared steam turbines, 4 Sural-Norguet boilers |
| Power, h. p. | 58000 |
| Max speed, kts | 37 |
| Fuel, t | oil 470 |
| Endurance, nm(kts) | 2760(20) |
| Armament | 3 x 2 - 130/45 M1935, 1 x 2 - 37/50 M1933, 4 x 2 - 13.2/76, 5 x 1 - 8.80, 1 x 3 - 550 TT, 2 x 2 - 550 TT, 1 DCR (8), 1 Ginocchio towed AS torpedo |
| Complement | 187 |

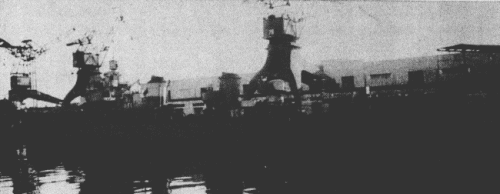

Graphics
FR32
Project history
All these French destroyers were scuttled in Toulon and later salvaged by Italians. Le Hardi was renamed FR37, Foudroyant FR36, L`Adroit FR33, Lansquenet FR34, Sirocco FR32 and Bison FR35. Later they all were captured by Germans and scuttled. Only FR33 was returned to France but in very bad condition.
