AUDACE missile destroyers (1972-1973)





Ardito 1978

Ships


Name No Yard No Builder Laid down Launched Comm Fate
Ardito D550   Italcantieri, Castellammare 19.7.1968 27.11.1971 5.12.1973 stricken 9.2006
Audace D551   CNR, Riva Trigoso 27.4.1968 2.10.1971 16.11.1972 stricken 9.2006


Technical data


Displacement standard, t

3600

Displacement full, t

4400

Length, m

136.6

Breadth, m

14.4

Draught, m

4.60

No of shafts

2

Machinery

D550: 2 sets Ansaldo geared steam turbines, 4 Foster Wheeler boilers

D551: 2 sets CNR geared steam turbines, 4 Foster Wheeler boilers

Power, h. p.

73000

Max speed, kts

33

Fuel, t

oil

Endurance, nm(kts)3000(20)
Armament

1 x 1 Tartar SAM (40 RIM-24), 2 x 1 -127/54 OTO-Melara, 4 x 1 - 76/62 OTO-Melara Compact, 4 - 533 TT, 2 x 3 - 324 Mk 32 Mod.5 TT, 2 helicopters (2 AB-212ASW or 1 SH-3D)

Electronic equipment

D550: SPS-12, SPS-52B, SPQ-2, 2x SPG-51B, 3x RTN-10X, SPN-748 radars, CWE-610 sonar, 2x SCLAR decoy RL, SADOC CCS

D551: RAN-3, SPS-52B, SPQ-2, 2x SPG-51B, 3x RTN-10X radars, CWE-610 sonar, 2x SCLAR decoy RL, SADOC CCS

Complement

380



Standard scale images


<i>Audace </i>1975
Audace 1975
<i>Ardito </i>1995
Ardito 1995


Graphics


<i>Ardito </i>2001
Ardito 2001

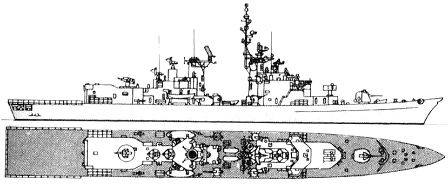

<i>Ardito </i>1978
Ardito 1978


Project history Although

Although initially described as 'Improved Impavidos', these ships showed little resemblance to their predecessors. They incorporated the new SADOC computer combat direction system, which enormously increased their capability, and a large helicopter hangar aft (for two AB-212 or one SH-3D). The gun battery consisted of the new Italian-made lightweight 127mm/54 and the new Compact 76mm/62 The four tubes for 533mm wire-guided torpedoes tired aft over the stern.

Modernizations

1988, Ardito; 1989, Audace: - 1 x 1 Tartar SAM (40 RIM-24), 1 x 1 - 127/54, 4 x 1 - 76/62, 4 - 533 TT, (SPS-12 or RAN-3), SPS-52B, SPQ-2, 2x SPG-51B, 3x RTN-10X radars, SADOC CCS; + 2 x 4 Teseo Mk 2 SSM (8 Otomat Mk 2), 1 x 1 Standard SM-1MR SAM (40 RIM-66), 1 x 8 Albatros SAM (16 Aspide), 4 x 1 - 76/62 OTO-Melara Compact SR, SPS-768, SPS-774, SPS-52C, SPQ-2D, 2x SPG-51C, 3x SPG-76 radars, SLQ-732 Nettuno ECM suite, SLQ-25 Nixie torpedo decoy, SADOC-2 (IPN-20) CCS

1991, both: + 2 x 1 - 20/70 Mk 4
