Vittorio Emanuele

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Vittorio Emanuele			Arsenale di Genova	1854	1856	1856 // 3.1861	stricken 1900

Technical data

Displacement normal, t	3126
Displacement full, t	3300
Length, m	55.6 pp 61.9 oa
Breadth, m	15.3
Draught, m	6.28
No of shafts	1
Machinery	1 HC, 3 boilers
Power, h. p.	1488
Max speed, kts	9
Fuel, t	coal 380
Endurance, nm(kts)
Armament	1 x 1 - 210/12 80pdr ML, 16 x 1 - 177/16 40pdr ML, 20 x 1 - 177/9 40pdr ML howitzers, 14 x 1 - 135/9 20pdr ML howitzers
Complement	539

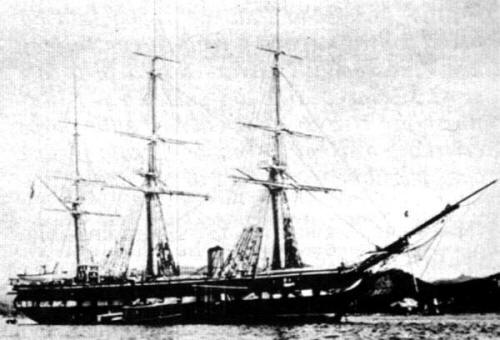

Graphics

Project history

Wooden screw frigate of Sardinian Navy, incorporated to Regia Marina in 1861.

Modernizations

1866: new armament consisted of 1 x 1 - 270/14 RML, 10 x 1 - 200/9 ML howitzers, 8 x 1 - 164/15 Palliser 3.54ton MLR, 32 x 1 - 164/14 ML, 6 x 1 - 80/11 SBML (landing guns)

1878: new armament consisted of 2 x 1 - 203/13 Armstrong 7ton MLR, 20 x 1 - 164/17 Palliser 5.12ton MLR, 4 x 1 - 80/13 Uchatius SBMLR, 4 x 1 - 75/13 Uchatius 9.5cwt SBBL

1894: new armament consisted of 10 x 1 - 164/17 Palliser 5.12ton MLR, 2 x 1 - 120/40 A

Naval service

Wooden screw frigate of Sardinian Navy, incorporated to Regia Marina. Used as TS since 1894.
