GIULIO INGIANNI patrol craft (1992)
Giulio Ingianni
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Giulio Ingianni | CP409 | CNR, Ancona | 13.6.1992 | in service (2019) |
Technical data
| Displacement standard, t | 180 |
|---|---|
| Displacement full, t | 205 |
| Length, m | 34.6 |
| Breadth, m | 7.10 |
| Draught, m | 2.10 |
| No of shafts | 2 |
| Machinery | 2 Isotta-Fraschini ID 36 V200 diesels |
| Power, h. p. | 5820 |
| Max speed, kts | 22 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1000(18) |
| Armament | 1 x 1 - 20/70 Mk 4, 2 x 1 - 7.6/90 |
| Electronic equipment | Decca 20V90, Decca 2050/6 radars |
| Complement | 13 |
Graphics

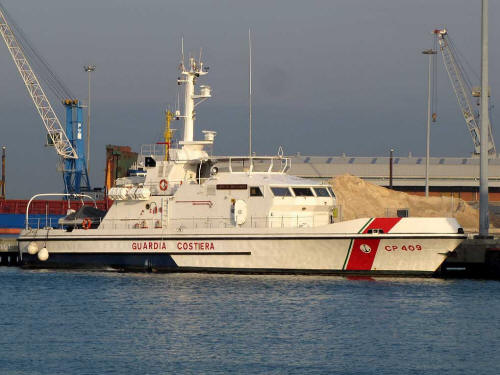

Giulio Ingianni
Project history
Ordered in 1991. Steel hull with light alloy superstructure. Carries a US-made Boston Whaler Outrage-19 5.8m launch powered by two 60hp Yamaha out-boards. Has an electrohydraulic telescoping crane to assist in recovery, a firefighting water monitor on the mast platform, and a stern wedge to improve speed and fuel economy. Equipped with Vosper fin stabilizers.
Modernizations
None.
Naval service
No significant events.
