GENNA patrol boat (1980/1984)
Genna 1986
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Genna | G72 | Swiftships, Morgan City, USA | 1980 // 1984 | discarded 1990s |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 120 |
| Length, m | 32.2 |
| Breadth, m | 7.20 |
| Draught, m | 3.10 |
| No of shafts | 3 |
| Machinery | 3 MTU 12V331 TC92 diesels |
| Power, h. p. | 2940 |
| Max speed, kts | 35 |
| Fuel, t | diesel oil 24 |
| Endurance, nm(kts) | 1380(30) |
| Armament | 1 x 1 - 20/70 Mk 4, 2 x 1 - 7.6/90 |
| Electronic equipment | 2x FR-711 radars |
| Complement | 11 |
Graphics

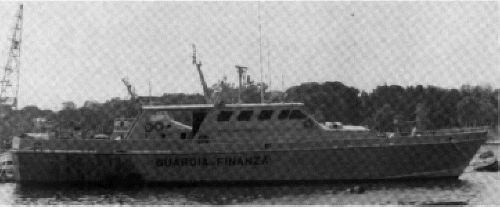

Genna 1986
Project history
Aluminium construction. Confiscated boat.
Modernizations
None.
Naval service
No significant events.
