UBALDO DICIOTTI patrol craft (2002-2004)

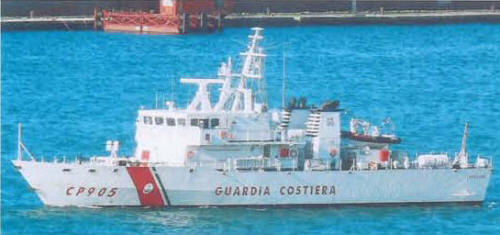

Antonio Peluso 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Ubaldo Diciotti | CP902 | Fincantieri, Muggiano | 8.4.2002 | 20.7.2002 | to Panama 4.2014 (Ricardo Martinelli Berrocal) | ||
| Luigi Dattilo | CP903 | Fincantieri, Muggiano | 2002 | 30.11.2002 | to Panama 4.2016 (P902) | ||
| Michelle Fiorillo | CP904 | Fincantieri, Muggiano | 30.11.2002 | 7.4.2003 | in service (2019) | ||
| Alfredo Peluso | CP905 | Fincantieri, Muggiano | 2.7.2003 | in service (2019) | |||
| Oreste Corsi | CP906 | Fincantieri, Muggiano | 9.2003 | 10.2.2004 | in service (2019) |
Technical data
| Displacement standard, t | 390 |
|---|---|
| Displacement full, t | 427 |
| Length, m | 47.2 pp 52.8 oa |
| Breadth, m | 8.10 |
| Draught, m | 2.50 |
| No of shafts | 4 |
| Machinery | 4 Isotta-Fraschini V1716 T2 MSD diesels |
| Power, h. p. | 12840 |
| Max speed, kts | 32 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1800(16) |
| Armament | 1 x 1 - 20/70 Mk 4 |
| Electronic equipment | 2x SPN-753XS(v)2 radars |
| Complement | 30 |
Standard scale images
Michele Fiorillo 2010
Graphics
Antonio Peluso 2008
Project history
Three ordered in 2000, with an option for a fourth and fifth later taken up. Revised version of the Saettia as modified for Guardia Costiera work; have flush deck, cleared aft for helicopter hovering access. Non-retractable fin stabilizers are fitted. Carry an Achille M-4 remotely operated surveillance submersible with a 300m operating depth.
Modernizations
None.
Naval service
No significant events.
