LUIGI DATTILO patrol ships (2013-2014)
Luigi Dattilo
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Luigi Dattilo | CP940 | CN Castellammare di Stabia | 2.5.2012 | 19.12.2012 | 30.9.2013 | in service (2019) | |
| Ubaldo Diciotti | CP941 | CN Castellammare di Stabia | 9.1.2013 | 16.7.2013 | 20.3.2014 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 3600 |
| Length, m | 94.5 |
| Breadth, m | 16.0 |
| Draught, m | 7.00 |
| No of shafts | 2 |
| Machinery | 2 General Electric 12V228 diesels |
| Power, h. p. | 6225 |
| Max speed, kts | 18 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3000(18) |
| Armament | 2 x 1 - 7.6/90, helicopter deck |
| Electronic equipment | 3x Sharp Eye radars |
| Complement | 41 + 9 passengers |
Standard scale images

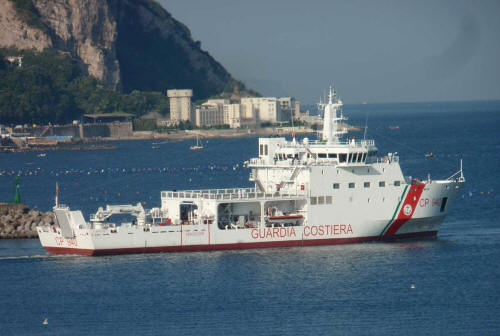

Luigi Dattilo 2015
Graphics
Luigi Dattilo
Project history
Patrol ship, intended for SAR, anti-pollution and patrol roles. Have accommodations for 60 rescued. 4 fast boarding boats.
Modernizations
None.
Naval service
No significant events.
