CP314 patrol boats (1988-1991)
CP318 1997
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
CP314-318 |
Baglietto, Varazze: CP314-317 CN Rodriguez, Messina: CP318 |
1988: CP314, 315 1991: CP316-318 |
2000s: CP315 (fire) |
none |
2011-2012: CP314, 316-318 |
Technical data
| Displacement standard, t | 43 |
|---|---|
| Displacement full, t | 45 |
| Length, m | 18.1 |
| Breadth, m | 5.75 |
| Draught, m | 1.20 |
| No of shafts | 2 |
| Machinery | 2 Deutz diesels |
| Power, h. p. | 1700 |
| Max speed, kts | 20 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 400(16) |
| Armament | none |
| Electronic equipment | radar |
| Complement | 7 + 20 rescuees |
Graphics

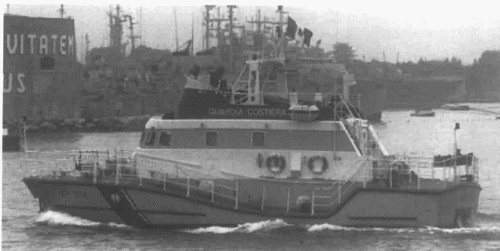

CP318 1997
Project history
Patrol and rescue launches of Coast Guard.
Modernizations
None.
Naval service
No significant events.
