"MS type 1" motor torpedo boats (MS11) (1942)

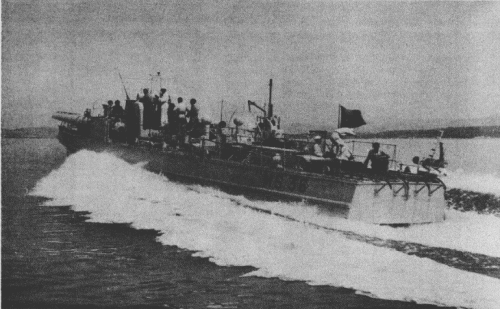

MS36

Ships


Names Builders Completed Losses Transfers Discarding

MS11, 1.1949- MV611, 11.1952- MS611, 1.1954- P471 MS471

MS12 - 16

MS21 - 23

MS24, 1.1949- MV612, 11.1952- MS612, 1.1954- P472 MS472

MS25; MS26

MS31, 1.1949- MV613, 11.1952- MS613, 1.1954- P473 MS473

MS32 - 36

CRDA, Monfalcone: MS11-16, 21-26, 31-36

4 - 8.1942: MS11 - 16, 21 - 26, 31 - 36

MS12 (19.9.1943), MS13 (11.4.1943), MS14 (11.8.1942), MS15 (26.10.1943), MS16 (9.9.1943, later German SA1), MS21 (25.9.1943), MS22 (7.5.1943), MS23 (18.9.1943), MS25 (30.4.1943), MS26 (9.10.1943), MS32 (9.9.1943), MS33 (3.11.1943), MS34 (9.9.1943, later German SA2), MS36 (9.9.1943, later German SA3)

France 12.1948: MS35

5/1965: MS471

1974: MS472

1975: MS473



Technical data


Displacement standard, t
Displacement full, t

MS11 - 16, 21 - 23: 62.7

MS24 - 26, 31 - 36: 63.5

Length, m

28.0

Breadth, m

4.30

Draught, m

1.55

No of shafts

3

Machinery

3 Isotta Fraschini petrol engines

Power, h. p.

3450

Max speed, kts

32

Fuel, t

petrol 9

Endurance, nm(kts)250(32)
Armament

(1 - 2) x 1 - 20/65 Breda 1940, 2 x 1 - 6.5/115, 2 - 533 TT (4), (6 - 8) DC

Electronic equipmentpresumably hydrophone
Complement

19



Standard scale images


MS24 1942
MS24 1942


Graphics


MS36
MS36


Project history

Larger, than 1930th-built MAS boats. As a prototype for them German-built boats of Yugoslavian Navy captured by Italians in 1941 have served. After trials of these boats which have appeared notably more seaworthy than MAS of "500" class, in June, 1941 their almost exact copies have been ordered. To stress the increased battle qualities of new boats, their indexation was replaced from MAS to MS. Composite hulls. DCs used on MS, were heavier, than applied on MAS: 100kg against 50.

Modernizations

1949, MV611 - 613: were armed with 2 x 1 - 20/65 Breda 1940

1952, MS611 - 613: + 2 - 533 TT (4), (6 - 8) DC

1960, MS472, 473: new diesels were installed (4500hp, 33kts); boats were converted to convertible MTB / MGB armed with 1 x 1 - 40/60 Mk 3, 2 - 450 TT, mines as MTB or 2 x 1 - 40/60 Mk 3, mines as MGB.

Naval service

No significant events.
