CP261 patrol boats (2000)
CP264
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
CP261-264 |
Intermarine, La Spezia: CP261-264 |
2000: CP261-264 |
none |
none |
in service (2019): CP261-264 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 30 |
| Length, m | 16.4 |
| Breadth, m | 4.50 |
| Draught, m | 1.03 |
| No of shafts | 2 |
| Machinery | 2 MAN LE-401 diesels |
| Power, h. p. | 2000 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 300(30) |
| Armament | 2 x 1 - 7.6/90 |
| Electronic equipment | radar |
| Complement | 5 |
Graphics

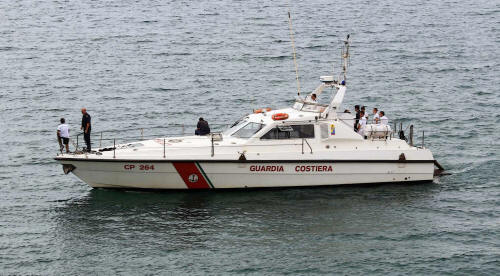

CP264
Project history
GRP hull.
Modernizations
None.
Naval service
No significant events.
