CP254 patrol boats (1984-1989)
CP254 2005
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
CP254, 255, 259, 260 |
Tecnomarine Picchiotti, Viareggio: CP254, 255, 259, 260 |
1984-1989: CP254, 255, 259, 260 |
none |
none |
2006: CP255 2010: CP254, 260 2014: CP259 |
Technical data
| Displacement standard, t | 21 |
|---|---|
| Displacement full, t | 23 |
| Length, m | 15.1 |
| Breadth, m | 5.25 |
| Draught, m | 1.00 |
| No of shafts | 2 waterjets |
| Machinery | 2 Isotta-Fraschini ID36 SS6V diesels |
| Power, h. p. | 1500 |
| Max speed, kts | 31 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 7.6/90 |
| Electronic equipment | radar |
| Complement | 7 |
Graphics

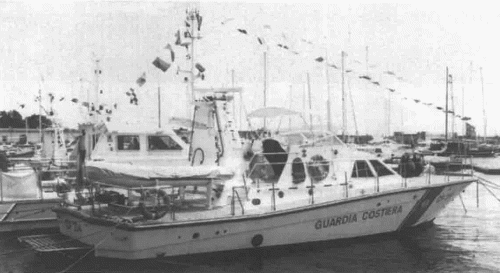

CP254 2005
Project history
Patrol launches of Coast Guard. GRP hull.
Modernizations
None.
Naval service
No significant events.
