CP2036 patrol boats (1976-1978)
CP2039
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
CP2036-2045 |
Keith Nelson Italia, Viareggio: CP2036-2045 |
1976: CP2036-2038 1977: CP2039-2041 1978: CP2042-2045 |
none |
Iraq, 2006: CP2036 (P203), 2037 (P204) |
2006: CP2038, 2041, 2042, 2044, 2045 2009: CP2039, 2040, 2043 |
Technical data
| Displacement standard, t | 11 |
|---|---|
| Displacement full, t | |
| Length, m | 12.5 |
| Breadth, m | 3.61 |
| Draught, m | 1.02 |
| No of shafts | 2 |
| Machinery | 2 AIFO 828M diesels |
| Power, h. p. | 660 |
| Max speed, kts | 22 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 400 |
| Armament | none |
| Electronic equipment | none |
| Complement | 4 |
Graphics

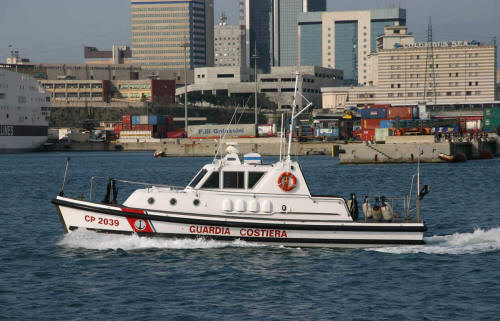

CP2039
Project history
Patrol launches of Coast Guard.
Modernizations
None.
Naval service
No significant events.
