ANGELO CABRINI patrol boats

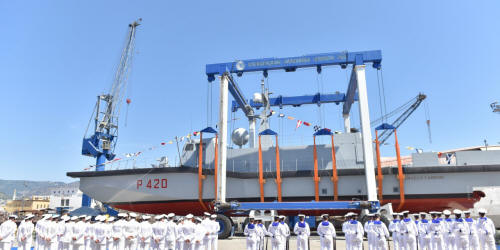

Angelo Cabrini 2018
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Angelo Cabrini | P420 | Intermarine, Messina | 9.2016 | 26.5.2018 | 2019 | building (2019) | |
| Tullio Tedeschi | P421 | Intermarine, Messina | 2017 | 2019 | 2020 | building (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 190 |
| Length, m | 36.3 pp 44.2 oa |
| Breadth, m | 9.20 |
| Draught, m | |
| No of shafts | 3 waterjets |
| Machinery | 3 MTU 16V200 M94 diesels |
| Power, h. p. | 8000 |
| Max speed, kts | 32 |
| Fuel, t | diesel oil |
| Armament | 1 x 1 Spike-LR ATM (some Spike-LR), 1 x 1 - 12.7/90, 2 x 6 - 7.6/90 |
| Military load | 20 commandos |
| Electronic equipment | SPN-760 radar, Janus-N e/o sustem, SADOC Mk 4 CCS |
| Complement | 9 |
Graphics
Angelo Cabrini 2018
Project history
Unita Polivalente Altissima Velocita = Fast multipurpose unit. Ordered in June 2016. Carriers for commandos and combat swimmers.
Modernizations
None
Naval service
No significant events.
