FIGHTING SHIPS OF THE WORLD
ITALY
AMPHIBIOUS SHIPS AND CRAFT
MARIO MARINO commando support craft (1984)
Alcide Pedretti 1999
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
MEN213 Mario Marino MEN214 Alcide Pedretti |
Intermarine-Crestitalia, Ameglia, La Spezia: MEN213, 214 |
1984: MEN213, 214 |
none | none |
late 1980s, diving tenders: MEN213, MEN214 |
Technical data
| Displacement standard, t | 70 |
|---|---|
| Displacement full, t | 97 |
| Length, m | 22.9 |
| Breadth, m | 6.90 |
| Draught, m | 1.06 hull 1.50 max |
| No of shafts | 2 |
| Machinery | 2 Isotta-Fraschini ID36 SS12V diesels |
| Power, h. p. | 3040 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 450(23) |
| Armament | decompression chamber |
| Military load | swimmers |
| Complement | 8 |
Graphics

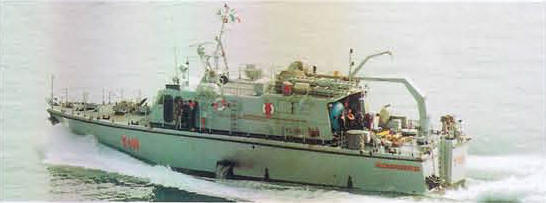

Alcide Pedretti 1999
Project history
Typed MAS (Motoscafi Appoggio Subacquei). Built for Raggruppamento Incursori assault swimmers (COMSUBIN), based at La Spezia. GRP construction.
Modernizations
None.
Naval service
Soon after commission both craft were re-classified as auxiliaries (diving tenders) Y498 and 499 respectively.
